Description

                                                      Aluminium gantry crane, relocating with suspended load, capacity 1000 and 1500 kg

• capacity 1000 lub 1500 kg
• the device is equipped with 4 polyurethane steering wheels with a brake, which enable to relocate the gantry crane alongside and crosswise with the suspended load –  optional – wheels can be exchanged for full, made of rubber, very elastic, shock absorbing, accessable for the gantry cranes with maximum load capacity of 1000 kg
• possibility to work in and outside the building
• in standard version equipped with a push trolley with a blockade that can be used in any place
• the equipment has additional beams between the side frame and the girder which increases its stability
• single or double-girder
• possibility to choose between different lengths of girders (on a single – 4 m, on a double up to 8 m)
• standard height adjustment of an aluminum crane with a single beam, in each version in the scope of:

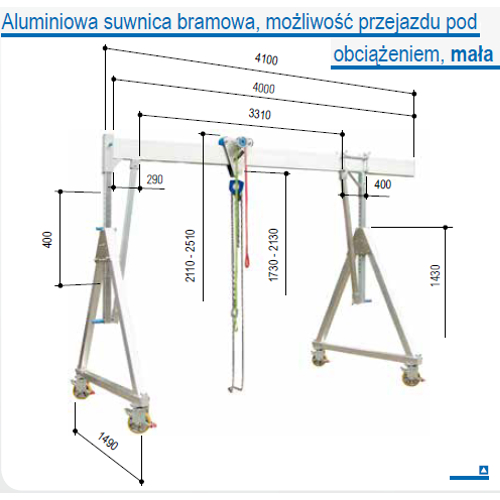

  – small  (2110 – 2510 mm)

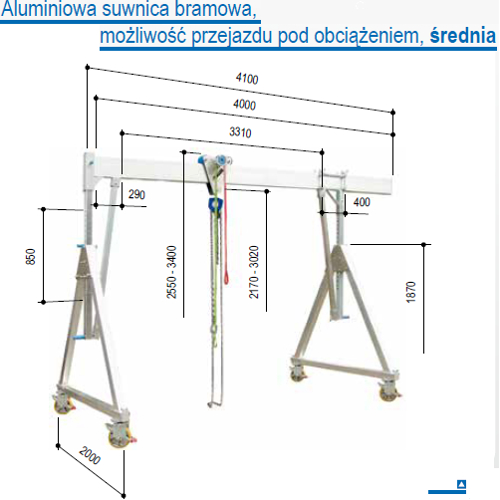

  – medium  (2550 – 3400 mm)

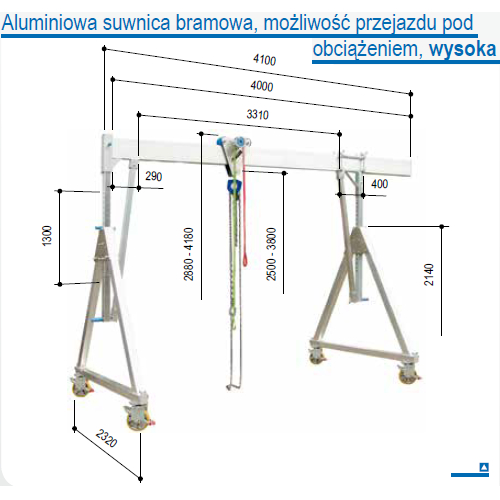

  – tall  (2880 – 4180 mm)
• standard height adjustment of an aluminum crane with a double beam, in each version in the scope of:

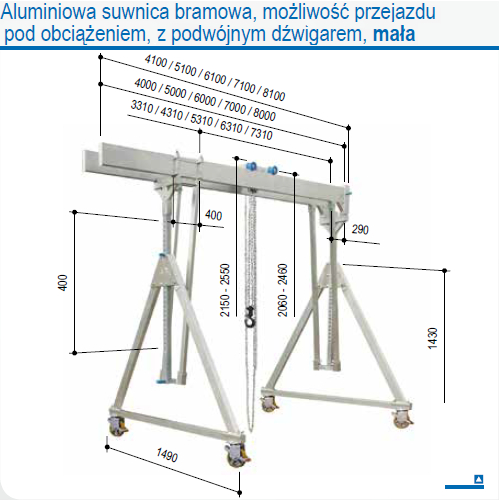

  – small  (2150 – 2550 mm)

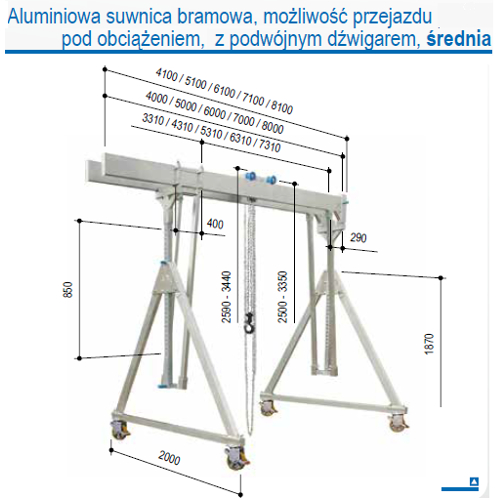

  – medium  (2590 – 3440 mm)

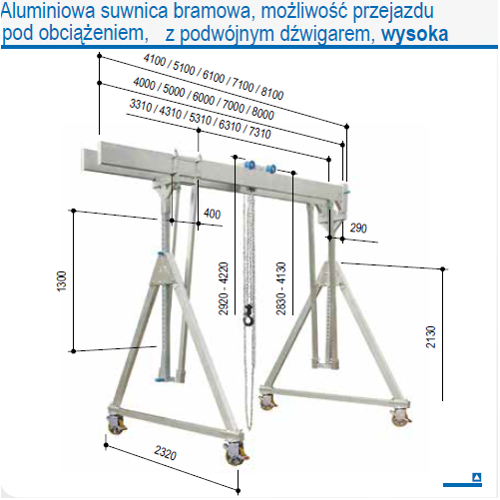

  – tall  (2920 – 4220 mm)
• option to suspend a manual or electric chain hoist with power supply as well as a lifting sling

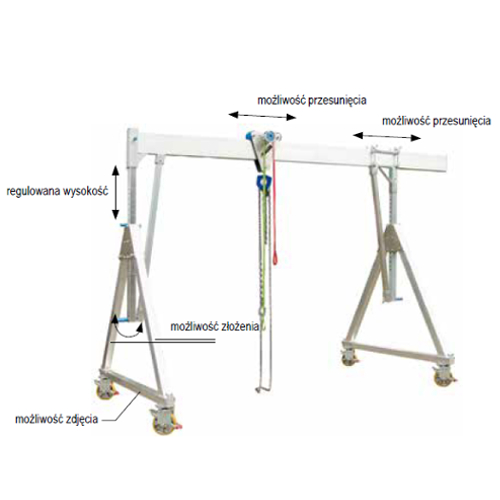

• folding sides of the gantry crane with height regulation
• light-weight aluminium desing
• simple and quick assembly and disassembly of the equipment
• used for loading and reloading, maintenance work, in workshops and stonemasonry and also for assembly
• optional – possible to make aluminium gantry cranes with splitted or joined girder
  – can be divided into 2 parts (do not have to be equal to maintain the same lifitng capacity)
  – both parts can be used as single aluminium made beams
  – spliting the girder facilitates storage and transport, especially in case of longer beams
